DeckLink SDI™ |

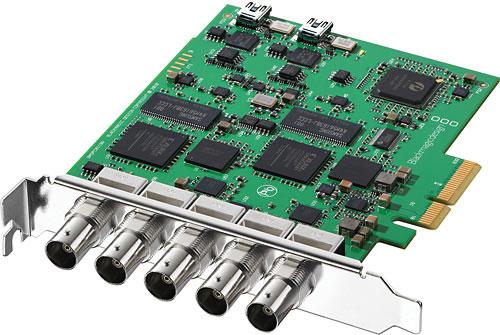

DeckLink Duo™ |
DeckLink Optical Fiber™ |
DeckLink Studio™ |
Connections |
|
|
|
|
SDI Video Input |
1 x 10 bit SD/HD switchable. |
2 x 10 bit SD/HD independantly switchable. |
1 x 10 bit SD/HD switchable. |
1 x 10 bit SD/HD switchable. |
SDI Video Output |
1 x 10 bit SD/HD switchable. |
2 x 10 bit SD/HD independantly switchable. |
1 x 10 bit SD/HD switchable. |
1 x 10 bit SD/HD switchable. 1 x 10-bit SD only, down converted or key. |
Optical Fiber Video Input |
None |
None |
1 x 10 bit SD/HD switchable. |
None |
Optical Fiber Video Output |
None |
None |
1 x 10 bit SD/HD switchable. |
None |
Analog Video Input |
None |
None |
None |
1 x Component video on 3 BNCs. 1 x S-Video video on S-Video connector. 1 x Composite NTSC/PAL on 1 BNC. |
Analog Video Output |
None |
None |
None |
1 x Component video on 3 BNCs. 1 x S-Video video on S-Video connector. 1 x Composite NTSC/PAL on 1 BNC. |
HDMI Video Input |
None |
None |
None |
1 x HDMI type A connector |
HDMI Video Output |
None |
None |
None |
1 x HDMI type A connector |
SDI Audio Input |
8 Channels embedded in SD and HD. |
8 Channels per input, embedded in SD and HD. |
8 Channel embedded in SD and HD. |
8 Channels embedded in SD and HD. |
SDI Audio Output |
8 Channels embedded in SD and HD. |
8 Channels per output, embedded in SD and HD. |
8 Channel embedded in SD and HD. |
8 Channels embedded in SD and HD. |
Optical Fiber Audio Input |
None |
None |
8 Channel embedded. |
None |
Optical Fiber Audio Output |
None |
None |
8 Channel embedded. |
None |
Analog Audio Input |
None |
None |
None |
4 Channels of professional balanced analog audio via 1/4” jack connectors. |
Analog Audio Output |
None |
None |
None |
4 Channels of professional balanced analog audio via 1/4” jack connectors. Channels 3 and 4 can switch to AES/EBU outputs. |
HDMI Audio Input |
None |
None |
None |
2 Channels embedded in SD and HD. |
HDMI Audio Output |
None |
None |
None |
2 Channels embedded in SD and HD. |
AES/EBU Audio Input |
None |
None |
None |
2 Channels unbalanced with sample rate converter. |
AES/EBU Audio Output |
None |
None |
None |
2 Channels unbalanced. Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3 & 4 and 5 & 6 output. This provides a total of 6 AES/EBU output audio channels when using this feature. |
Sync Input |
1 x sync input. Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format. |
1 x common sync input. Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format. |
1 x sync input. Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format. |
1 x sync input. Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format. |
Device Control |
Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control. |
None |
Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control. |
Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control. |
Computer Interface |
PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCIe slots. |
PCI Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots. |
PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCIe slots. |
PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCIe slots. |
